Main Features:
- Standalone SAS/SATA eraser, no PC connection or software required.
- Portable hard disk eraser with compact dimensions for use at any location.
- Optional printer for real-time printing of reports for each erased disk.
- Asynchronous erase on each of the 4 SAS/SATA ports.
- Log Report function for storage and export of log data.
- 5 erase functions; Quick, Full, DoD, Secure and DoD 7-pass Erase.
- Copy/Sanitize speed of max 18 GB/min (300 MB/s), per port.
Available models:

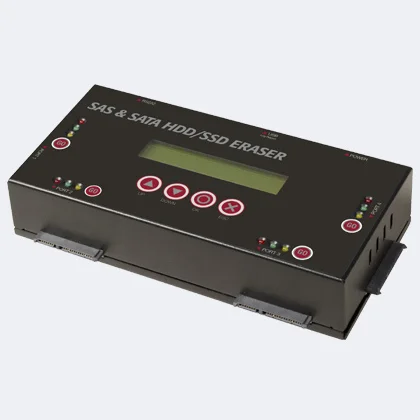

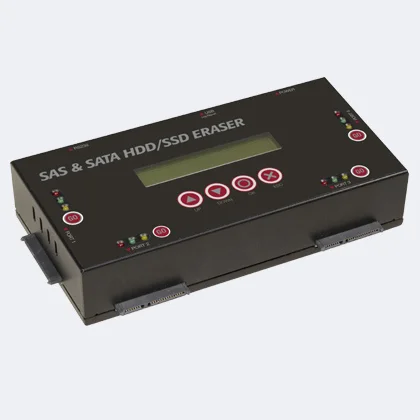

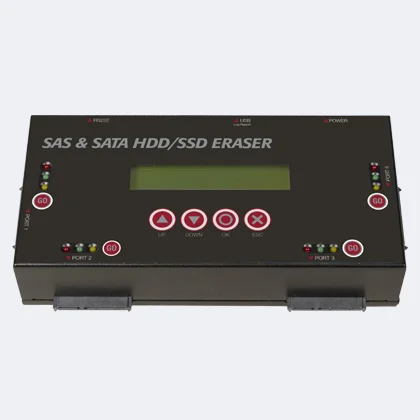

The U-Reach TP400SAS is a portable eraser for erasing and duplicating SAS and SATA hard drives and SSD's. Due to its compact dimensions, the TP eraser can easily be used at any desired location. Four SAS/SATA drives can be erased asynchronously; each SAS/SATA port can be controlled individually. The TP400SAS eraser has five Erase functions available; "Quick Erase", "Full Erase", "Secure Erase", "DoD Erase" and "DoD 7-pass Erase". The DoD Erase function complies with the 5220.22-M US Department of Defense standard.
The U-Reach TP eraser offers a built-in Log Report function. It stores data from each erased SAS/SATA HDD or SSD; duration, Erase mode, result and serial number. The log information can be printed in real-time with the optional label printer. The log information can also be exported and saved to a USB stick for use on a PC.
In addition to erasing SAS/SATA drives, the U-Reach TP400SAS eraser can also duplicate (SATA only). The TP can simultaneously make three copies of a SATA hard disk or SSD. The TP400SAS duplicator/eraser offers a maximum speed of 18 GB per minute (300 MB/s) on all channels. Speed does not decrease when multiple hard drives are connected. The TP HDD eraser/duplicator offers four different SATA copy functions; "Quick Copy", "All Partitions Copy", Percentage Copy "and" Whole HDD Copy "The Quick Copy function supports the following formats; FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4) and Mac (HFS, HFS+, HFSX).
Optional adapters are available for the TP400SAS eraser/duplicator that allow various drive interfaces to be connected to the SAS/SATA ports of the TP400SAS. Adapters are available for IDE, mSATA, eSATA, iVDR, M.2 (NGFF) and Cfast, among others.
- Standalone SAS/SATA HDD/SSD eraser and duplicator (SATA only).
- Portable SAS disk eraser with minimal dimensions for use on every location.
- Simultaneously sanatize multiple SAS/SATA disks asynchronously.
- Built-in Log Report function to store and export log data.
- Built-in Log Report function to store and export log data.
- Optional printer for real-time printing of Log Reports.
- Optional printer for real-time printing of Log Reports.
- Sanitization speed up to 18 GB/min (300 MB/s), per port.
- Sanitization speed up to 18 GB/min (3000 MB/s), per port.
- Quick Copy function for Windows, Linux and Mac.
- Quick Copy function for Windows, Linux and Mac.
- Supports Advanced Format HDD (15 TB+) and GPT, MRB table format.
- Sanitization modes; Quick, Full, DoD, Seucure and DoD 7-pass Erase.
- Sanitization modes; Quick, Full, DoD, Seucure and DoD 7-pass Erase.
- Optional adapters for IDE, mSATA, eSATA, iVDR, M.2(NGFF) and Cfast.
- Optional adapters for IDE, mSATA, eSATA, iVDR, M.2(NGFF) and Cfast
- Whole HDD Copy supports all formats through bitwise duplication.
- Easy operation with buttons and LCD display.
Log Report
Log Report printer
Maximum Erase speed
Quick Copy functie
Sanitization
Optional adapters
The U-Reach TP SAS/SATA eraser offers a built-in Log Report function which saves the data of each sanitized SAS/SATA HDD or SSD (duration, sanitize mode, result and serial number). The log information can be exported to a USB stick for use on a PC.
The U-Reach TP SAS/SATA eraser Log Report function stores data from each erased hard disk drive or SSD. This individual log data (duration, sanitization mode, result and serial number) can be printed directly to the optional label printer. The label printer is connected to the TP eraser via the RS232 port.
U-Reach TP400SAS erasers are able to simultaneously erase at a maximum speed of 18 GB/min to each SAS/SATA port. The speed always remains constant, even if the number of media to be duplicated increases.
The "Quick Copy" function (SATA only) only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
The U-Reach TP SAS/SATA erasers support different sanitization methods for hard disk drives and SSD's:
Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. DoD 7-pass Erase: 7 cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
The U-Reach SAS/SATA erasers support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
- Duplication: 1x source port, 3x target port (SATA only)
- Sanitization: 4x port asynchronous
Speed
Maximum 150 MB/s (9 GB/min) per SATA port (depending on media)
Capacity
Supports Advanced Format HDD (15 TB+) and GPT, MRB table format
Connection
- Standalone operation without computer or software
- RS232 serial port for connection of optional printer
- USB port for export of Log files
Language support
English, Japanese
Operation
- Display: monochrome LCD
- Status LED: (red / green / yellow) on each SATA port
- Operation keys: 4 push buttons (up, down, OK, ESC)
Supported media
- Native: 1.8"/2.5"/3.5" SAS/SATA hard disk drive en SSD
- With optional adapters: IDE, mSATA, eSATA, iVDR, M.2(NGFF), Cfast
Standard functions
- Erase: Quick Erase, Full Erase , DoD Erase (DoD 5220.22-M), Secure Erase (NIST 800-88), DoD 7-pass Erase
- Compare: Bit by Bit data compare
- Copy: Quick Copy, All Partitions Copy, Percentage Copy and Whole HDD Copy (SATA only)
Advanced functions
- Event Log Report:
Registration and export of detailed production information Log report files are created and saved on a USB stick
Supported formats
- Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4), MAC (HFS, HFSX, HFS+)
- Whole Media Copy: all formats
Supported file systems
All (Windows, Macintosh, Linux, Unix etc.)
Power supply
External power supply 12V 9A
Temperature and humidity
- In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%)
Dimensions
9.5 x 19.5 x 3.0 cm (LxWxH)
Weight
0.7 kg
Certification
FCC, CE, RoHS
Warranty
12 months carry-in warranty
Brochure Language: EN - File: 0.8 MB
Manual Language: EN - File: 1.7 MB
Product comparison Language: EN - File: 0.5 MB
U-Reach Product Catalog 2023 Language: EN - File: 10.9 MB
All prices and specifications are subject to change and availability.
All offers and orders are subject to our general terms and conditions. Please take note of our disclaimer and
privacy policy. Type errors as well as price changes reserved.
×
Log Report
The U-Reach TP SAS/SATA eraser offers a built-in Log Report function which saves the data of each sanitized SAS/SATA HDD or SSD (duration, sanitize mode, result and serial number). The log information can be exported to a USB stick for use on a PC.
×
Log Report printer
The U-Reach TP SAS/SATA eraser Log Report function stores data from each erased hard disk drive or SSD. This individual log data (duration, sanitization mode, result and serial number) can be printed directly to the optional label printer. The label printer is connected to the TP eraser via the RS232 port.
×
Maximum copy speed
U-Reach TP erasers are able to simultaneously erase at a maximum speed of 18 GB/min to each SAS/SATA port. The speed always remains constant, even if the number of media to be duplicated increases.
×
Quick Copy
The "Quick Copy" function (SATA only) only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
×
Sanitization
The U-Reach TP SAS/SATA erasers support different sanitization methods for hard disk drives and SSD's:
Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. DoD 7-pass Erase: 7 cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
×
Optional Adapters
The U-Reach SAS/SATA duplicators support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
