Main Features:
- Portable SAS/SATA duplicator with compact dimensions for use at any location.
- Standalone HDD/SSD duplicator and eraser, no PC connection or software required.
- Suitable for SAS and SATA hard drives and SSD's.
- Four Copy Functions and Five Erase Functions.
- Optional adapters available for use with other interfaces.
- Copy speed of up to 18 GB/min (300 MB/s).
Available models:

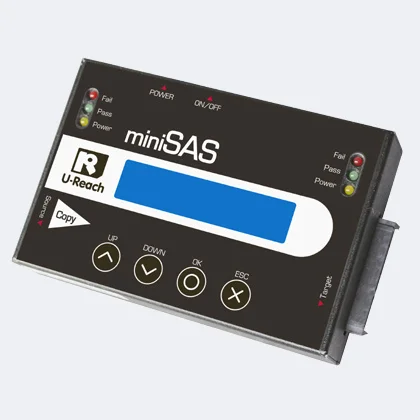

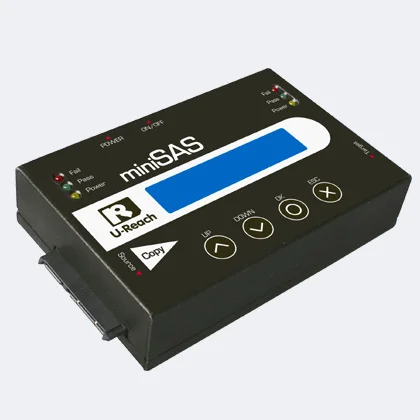

The U-Reach SA200 is a portable duplicator for quick and easy copying and sanitizing of SAS and SATA hard drives or SSD's. Due to the compact dimensions, the SA200 duplicator can be used at any desired location. The SA200 duplicator has a "Source" SAS/SATA port and a "Target" SAS/SATA port. This allows the SA200 to make one copy of a SAS or SATA drive at a time.
The SA200 duplicator offers a maximum copy speed of 18 GB per minute (300 MB/s). The SA200 HDD duplicator offers four different copy functions; "Quick Copy", "All Partitions Copy", "Percentage Cop" and "Whole HDD Copy". The Quick Copy function supports the following formats; FAT16 / 32, exFAT, NTFS, Linux (ext2/ext3/ext4) and Mac (HFS, HFS+, HFSX).
Optional adapters are available for the SA200 SAS/SATA duplicator which allow various drive interfaces to be connected to the SA200's SAS/SATA ports. Adapters are available for IDE, mSATA, eSATA, iVDR, M.2 (NGFF) and Cfast, among others.
In addition to duplicating, the SA200 duplicator can also be used to sanitize hard drives and SSD's. Five Erase functions are available for this; "Quick Erase," "Full Erase," "DoD Erase," "7-Pass DoD Erase" and "Secure Erase". The DoD Erase function complies with the 5220.22-M US Department of Defense standard.
- Standalone SAS/SATA HDD/SSD duplicator, no PC or software required.
- Portable duplicator with compact dimensions for use at any location.
- Duplicate or erase one SAS or SATA hard drive/SSD at a time.
- Duplication speed up to 18 GB/min (300 MB/s).
- Duplication speed up to 18 GB/min (300 MB/s).
- Quick Copy function for Windows, Linux and Mac.
- Quick Copy function for Windows, Linux and Mac.
- Supports Advanced Format HDD (15 TB+) and GPT, MRB table format.
- Erase functions: Quick, Full, Secure, DoD and 7-Pass DoD Erase.
- Erase functions: Quick, Full, Secure, DoD and 7-Pass DoD Erase.
- Optional adapters for IDE, mSATA, eSATA, iVDR, M.2(NGFF) and Cfast.
- Optional adapters for IDE, mSATA, eSATA, iVDR, M.2(NGFF) and Cfast
- Whole HDD Copy supports all formats through bitwise duplication.
- Easy operation with buttons and LCD display.
Maximum copy speed
Quick Copy functie
Sanitization
Optional adapters
U-Reach SA200 portable hard disk duplicators are able to duplicate to all SAS/SATA ports simultaneously with a maximum speed of 18 GB/min. The speed always remains constant, even if the number of media to be duplicated increases.
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
The U-Reach SA200 duplicator supports several methods to erase hard drives and SSD's:
Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. DoD 7-pass Erase: 7 cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
The U-Reach SAS/SATA duplicators support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
Maximum 300 MB/s (18 GB/min) per SAS/SATA port (depending on media)
Capacity
Supports Advanced Format HDD (15 TB+) and GPT, MRB table format
Connection
Standalone operation without computer or software
Language support
English, Japanese
Operation
- Display: monochrome LCD
- Status LED: (red / green / yellow) on each SATA port
- Operation keys: 4 push buttons (up, down, OK, ESC)
Supported media
- Native: 1.8"/2.5"/3.5" SAS/SATA hard disk drive en SSD
- With optional adapters: IDE, mSATA, eSATA, iVDR, M.2(NGFF), Cfast
Standard functions
- Copy: Quick Copy, All Partitions Copy, Percentage Copy and Whole HDD Copy
- Compare: Bit by Bit data compare
- Erase: Quick Erase, Full Erase , DoD Erase (DoD 5220.22-M), Secure Erase (NIST 800-88), DoD 7-pass Erase
Supported formats
- Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4), MAC (HFS, HFSX, HFS+)
- Whole Media Copy: all formats
Supported file systems
All (Windows, Macintosh, Linux, Unix etc.)
Power supply
External power supply 12V 7A
Temperature and humidity
- In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%)
Dimensions
8.0 x 11.5 x 3.0 cm (LxWxH)
Weight
0.36 kg
Certification
FCC, CE, RoHS
Warranty
12 months carry-in warranty
Brochure Language: EN - File: 0.4 MB
Manual Language: EN - File: 0.7 MB
Product comparison Language: EN - File: 0.5 MB
U-Reach Product Catalog 2023 Language: EN - File: 10.9 MB
All prices and specifications are subject to change and availability.
All offers and orders are subject to our general terms and conditions. Please take note of our disclaimer and
privacy policy. Type errors as well as price changes reserved.
×
Log Report
The U-Reach TP eraser offers a built-in Log Report function which saves the data of each sanitized SATA HDD or SSD (duration, sanitize mode, result and serial number). The log information can be exported to a USB stick for use on a PC.
×
Log Report printer
The U-Reach TP eraser Log Report function stores data from each erased hard disk drive or SSD. This individual log data (duration, sanitization mode, result and serial number) can be printed directly to the optional label printer. The label printer is connected to the TP eraser via the RS232 port.
×
Maximum copy speed
U-Reach SA200 SAS/SATA duplicators are able to duplicate at a maximum speed of 18 GB/min to each SAS/SATA port. The speed always remains constant, even if the number of media to be duplicated increases.
×
Quick Copy
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
×
Sanitization
The U-Reach SA200 SAS/SATA duplicators support different sanitization methods for hard disk drives and SSD's:
Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. DoD 7-pass Erase: 7 cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
×
Optional Adapters
The U-Reach SAS/SATA duplicators support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
