Main Features:
- Standalone HDD/SSD duplicator, no PC connection or software required.
- SAS and SATA HDD/SSD sanitization and duplication.
- High speed copy of 18 GB/min (300 MB/s), per port.
- Open platform design with Multi-Interface connections.
- Real-time production status tracking with PC Monitoring.
- iSecuLog Log Report for storing and reviewing production data.
Available models:
The U-Reach MTS series duplicators are advanced systems tailored for professional duplication and erasure of SAS and SATA hard disk drives/SSDs. Boasting an impressive copy speed of 18 GB per minute (300 MB/s) across all channels, these MTS duplicators maintain consistent speed even when multiple hard disks are connected. This versatility makes the U-Reach MTS SAS duplicators highly suitable for efficiently duplicating or erasing SSDs and high-speed hard disk drives. The U-Reach MTS 1-15 hard disk duplicator can simultaneously generate fifteen copies of a SAS/SATA SSD or hard drive.
In addition to duplication, the MTS duplicator serves as a reliable tool for erasing SSDs and hard disk drives, offering seven erase functions: "Quick Erase," "Full Erase," "DoD Erase," "DoD 7-pass Erase," "Secure Erase," "Enhance Secure Erase," and "NSA Erase." Complying with DoD 5220.22-M, NSA, and NIST 800-88 Secure Erase standards, the MTS SAS duplicators support asynchronous erasure, enabling each SAS/SATA port to delete an individual disk drive.
The "Open Platform" design of the MTS duplicator series, featuring external cabling, allows for swift and easy connector changes. This "multi-interface" support, coupled with various optional adapters, streamlines the duplication of a wide array of SSDs, hard disks, and other data formats. Adapters are available for IDE, eSATA, mSATA, microSATA, M.2 (NGFF), and CFast.
Operating as stand-alone units, the MTS HDD duplicators eliminate the need for a computer or software. User-friendly operation is guaranteed, with all functions accessible through function keys and the LCD display. The "PC Monitoring" function enables real-time monitoring of the MTS hard disk duplicator's status and functionality via a connected PC. Extensive production information can be stored and accessed using the iSecuLog Log Report Management function. Offering four distinct copy functions: "Quick Smart Copy," "All Partitions Copy," "Percentage Copy," and "Whole HDD Copy," the Quick Copy function supports various formats, including FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4), and Mac (HFS, HFS+, HFSX).
- Standalone SAS/SATA HDD/SSD duplicator, geen PC of software nodig.
- Gelijktijdig meerdere SAS of SATA disks dupliceren of wissen.
- Maximum copy speed up to 18GB per minute, per SATA port.
- Maximum copy speed up to 18 GB per minute, per SATA port.
- Real-time PC monitoring function.
- Real-time PC monitoring function.
- iSecuLog Log Report Management function.
- iSecuLog Log Report Management function.
- Quick Copy function for Windows, Linux and Mac.
- Quick Copy function for Windows, Linux and Mac.
- Supports Advanced Format HDD (15 TB+) and GPT, MRB table format.
- Seven different Erase functions for sanitizing SAS / SATA disks.
- Seven different Erase functions for sanitizing SAS / SATA disks.
- Optional adapters for IDE, mSATA SSD, microSATA, eSATA and iVDR.
- Optional adapters for IDE, mSATA SSD, microSATA, eSATA and iVDR.
- Open platform Multi Interface design.
- Open platform Multi Interface design.
- Whole HDD Copy supports all formats through bitwise duplication.
- Easy operation with buttons and LCD display.
- Open Platform design for easy media exchange.
Maximum copy speed
Real-time PC monitoring
iSecuLog Log Report
Quick Copy
Sanitization
Optional adapters
Open Platform Multi Interface
U-Reach MTS series erasers are able to simultaneously sanitize at a maximum speed of 18 GB/min to each SATA port. The speed always remains constant, even if the number of media to be sanitized increases.
The PC Monitoring function makes it possible to monitor the status and progress of the current process in real-time. The information of each port is shown on the PC screen. This makes it easy to detect poorly performing hard disk drives. The required software is suitable for Windows PCs and is supplied free of charge.
The "iSecuLog" Report Management function makes it possible to view and save detailed information about the production process. The Log information can be viewed and exported directly via the supplied PC Link software (.txt, .csv, .xml or .pdf) or copied on a USB stick (.txt) on the system.
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
The U-Reach MTS erasers support many different sanitization methods for securly removing data from hard disk drives (HDD) and solid state drives (SSD):
Quick Erase, Full Erase, DoD Erase, DoD 7-pass Erase, Secure Erase, Enhance Secure erase en NSA Erase. The MTS SAS/SATA erasers conform to the DoD 5220.22-M, NSA en NIST 800-88 Secure Erase standards. The MTS sanitize functions support asynchronous operation; each SAS/SATA port can sanitize an individual disk.
The U-Reach SATA duplicators support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
The "Open Platform" design with external cabling ensures quick and easy interface changes. This "multi-interface" support allows for simple and efficient duplication of a large variety of hard disk, SSD's and others data formats.
Model
U-Reach MTS 1-15 SAS HDD/SSD duplicator
Product code
MTS1600SAS
EAN code
4717002690035
SAS/SATA ports
1x source port, 15x target port
Multi-Interface connections with external cables for easy switching of various interfaces
Speed
Maximum 300 MB/s (18 GB/min) per SAS/SATA port (depending on the media used)
Capacity
Supports Advanced Format HDD (15 TB+) and GPT, MRB table format
Connection
- Standalone operation without computer or software - Supports PC link for real-time monitoring and log report
Language support
English, Japanese
Operation
- Display: monochrome LCD
- Status LED: (red / green / yellow) on each SATA port
- Operation keys: 4 push buttons (up, down, OK, ESC)
Supported media
- Native: 1.8"/2.5"/3.5" SASSATA hard disk drive and SSD
- With optional adapters: 2.5"/3.5" IDE hard disk drive, mSATA SSD, microSATA, eSATA, M.2 (NGFF) and CFast
Standard functions
- Copy: Quick Smart Copy, All Partitions Copy, Percentage Copy and Whole HDD Copy
- Compare: Bit by Bit data compare
- Erase: Quick Erase, Full Erase , DoD Erase, DoD 7-pass Erase, Secure Erase, Enhanced Secure Erase, NSA Erase
- Diagnostic: Check Source Minimum Speed, Unknown Format, Minimum Speed
Advanced functions
- PC Monitoring:
USB connection to PC shows write speeds, copy times and progress percentage per port
- Event Log Report:
Registration and read back of detailed production information Log report files are created and saved on a USB stick
Supported formats
- Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4), MAC (HFS, HFSX, HFS+)
- Whole Media Copy: all formats
Supported file systems
All (Windows, Macintosh, Linux, Unix etc.)
Power supply
Switchable power supply 115VAC or 230VAC, 50/60Hz
Temperature and humidity
- In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%)
Dimensions
61,0 x 38,0 x 45,0 cm (LxWxH)
Weight
23,0 kg
Certification
FCC, CE, RoHS
Warranty
12 months carry-in warranty
Brochure Language: EN - File: 0.5 MB
Manual Language: EN - File: 1.9 MB
Product comparison Language: EN - File: 0.5 MB
U-Reach Product Catalog 2023 Language: EN - File: 10.9 MB
All prices and specifications are subject to change and availability.
All offers and orders are subject to our general terms and conditions. Please take note of our disclaimer and
privacy policy. Type errors as well as price changes reserved.
×
Maximum copy speed
U-Reach MTS series erasers are able to simultaneously sanitize at a maximum speed of 18 GB/min to each SATA port. The speed always remains constant, even if the number of media to be sanitized increases.
×
Real-Time PC Monitoring
The PC Monitoring function makes it possible to monitor the status and progress of the current process in real-time. The information of each port is shown on the PC screen. This makes it easy to detect poorly performing hard disk drives. The required software is suitable for Windows PCs and is supplied free of charge.
1. Monitor the duplicator status from PC.
2. Show brand, model, serialnumber, time to proces and result of each port. All information, from both source and target media, can be saved.
3. Slow read/write detection: slow preforming drives can simply be detected because all read/write speeds are recorded in the log file.
4. When exporting a log file you can select a time frame. Information is stored in a text (.txt) file and can be kept on a PC. File name is the export date. (example: 20181117.txt)
×
Log Report
The "iSecuLog" Report Management function makes it possible to view and save detailed information about the production process. The Log information can be viewed and exported directly via the supplied PC Link software (.txt, .csv, .xml or .pdf) or copied on a USB stick (.txt) on the system.
×
Quick Copy
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
×
Sanitization
The U-Reach MTS erasers support many different sanitization methods for securly removing data from hard disk drives (HDD) and solid state drives (SSD):
Quick Erase, Full Erase, DoD Erase, DoD 7-pass Erase, Secure Erase, Enhance Secure erase en NSA Erase. The MTS SAS/SATA erasers conform to the DoD 5220.22-M, NSA en NIST 800-88 Secure Erase standards. The MTS sanitize functions support asynchronous operation; each SAS/SATA port can sanitize an individual disk.
×
Optional Adapters
The U-Reach SATA duplicators support the use of optional adapters for connecting additional interfaces. This makes it possible to use more than one media standard. Adapters are available for:
- IDE
- eSATA, mSATA and Micro SATA
- M.2 (NGFF)
- CFast Card
×
Open platform Multi Interface
The "Open Platform" design with external cabling ensures quick and easy interface changes. This "multi-interface" support allows for simple and efficient duplication of a large variety of hard disk, SSD's and others data formats.

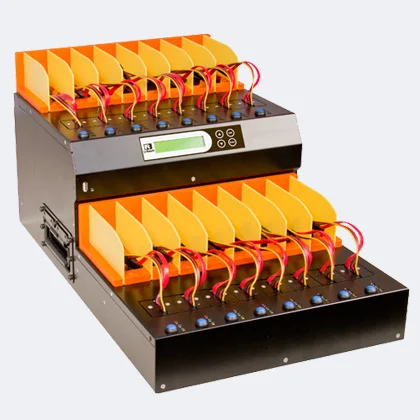

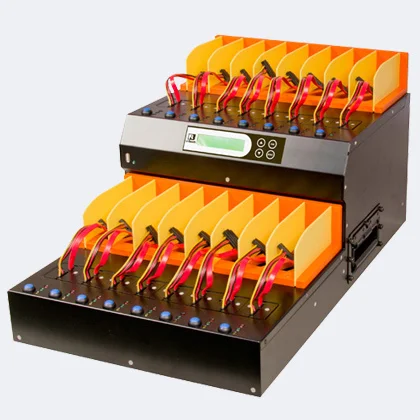

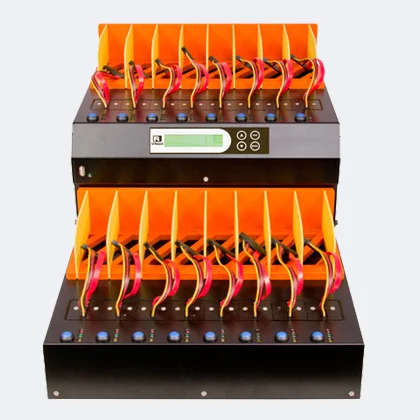

SAS HDD/SSD Duplicator MTS 1-15
