Main Features:
- Expansion of the KV 1-4 "Master" CRU hard disk duplicator.
- Standalone CRU eraser, no PC connection or software required.
- Daisy-Chain connection for easy expansion of capacity.
- Supports DX115 Digital Cinema Carrier.
- Real-time production status tracking with PC Monitoring.
- Log Report Management for storing and reviewing production data.
- High speed copy of 9 GB/min (150 MB/s), per port.
Available models:

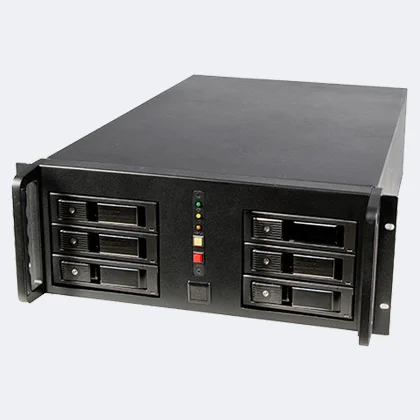

The U-Reach KV series CRU duplicators are professional systems specially developed for duplicating and erasing Digital Cinema CRU hard disk drives. The KV CRU duplicators use CRU DX115 DC enclosures for connecting the hard disks. The KV CRU hard drive duplicators offer a special "Daisy-Chain" function; The KV CRU 6 "Slave" is an extension of the "Master" 1-4 KV CRU duplicator. This can be connected to multiple "Slave" KV 6 CRU duplicators to form a large duplicator. Up to a maximum of 42 KV duplicators can be linked together.
Using the "PC Monitoring" function, the current status and functioning of the KV CRU duplicator can be monitored via a PC. Extensive production information can be stored and consulted with the Log Report Management function. The KV CRU duplicators work stand-alone, no computer or software is required. Operating the unit is very simple; all functions are controlled through the function keys and the LCD display.
The KV duplicators offer a maximum copy speed of 9 GB per minute (150 MB/s) on all channels. The speed does not decrease when multiple hard disks are connected. The KV HDD duplicator offers four different copy functions; "Quick Copy", "All Partitions Copy", "Percentage Copy" and "Whole HDD Copy". The Quick Copy function supports the following formats; FAT16/32, exFAT, NTFS, Linux (ext2/ext3/ext4) and Mac (HFS, HFS+, HFSX).
In addition to duplicating, the KV CRU duplicator can also be used to erase CRU hard disk drives. Four Erase functions are available for this; "Quick Erase", "Full Erase", "Secure Erase" and "DoD Erase". The DoD Erase function complies with the 5220.22-M US Department of Defense standard.
- Expansion of the KV 1-4 "Master" CRU eraser, no PC connection or software required.
- Daisy-Chain connection for easy expansion of capacity.
- Daisy-Chain connection for easy expansion of capacity.
- Erase multiple CRU disk drives at the same time.
- Supports DX115 Digital Cinema Carrier.
- Maximum copy speed up to 9 GB per minute, per SATA port.
- Maximum copy speed up to 9 GB per minute, per SATA port.
- Real-time PC monitoring function.
- Real-time PC monitoring function.
- Log Report Management function.
- Log Report Management function.
- Quick Copy function for Windows, Linux and Mac.
- Quick Copy function for Windows, Linux and Mac.
- Supports Advanced Format HDD (15 TB+) and GPT, MRB table format.
- Complete set of sanitization options; Quick, Full and DoD Erase.
- Complete set of sanitization options; Quick, Full and DoD Erase.
- Whole HDD Copy supports all formats through bitwise duplication.
- Easy operation with buttons and LCD display.
Daisy-Chain link
Maximum copy speed
Real-time PC monitoring
Log Report Management
Quick Copy
Sanitization

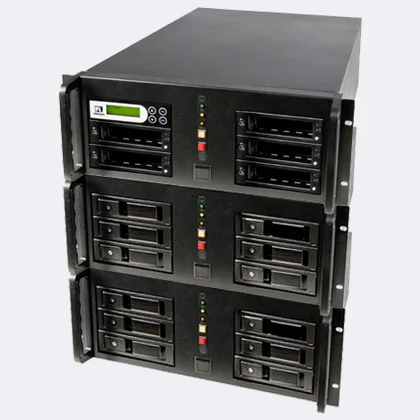

The KV CRU disk duplicators / erasers offer a special "Daisy-Chain" function; The "Master" 1-4 KV CRU system can be connected to multiple "Slave" KV 6 CRU systems to form one large system. Up to a maximum of 42 KV units can be linked together.
U-Reach KV CRU series erasers are able to simultaneously duplicate at a maximum speed of 9 GB/min to each SATA port. The speed always remains constant, even if the number of media to be duplicated increases.
The PC Monitoring function makes it possible to monitor the status and progress of the current process in real-time. The information of each port is shown on the PC screen. This makes it easy to detect poorly performing hard disk drives. The required software is suitable for Windows PCs and is supplied free of charge.
The Log Report Management function makes it possible to view and save detailed information about the production process. The Log information can be viewed and exported directly via the supplied PC Link software (.txt, .csv, .xml or .pdf) or copied on a USB stick (.txt) on the system.
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
The U-Reach erasers support different sanitization methods for hard disk drives and SSD's: Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
Model
U-Reach KV Slave 6 CRU hdd / ssd eraser
Product code
KV600C
EAN code
4717002698239
CRU ports
6x target port (CRU DX115 DC enclosure)
Speed
Maximum 150 MB/s (9 GB/min) per SATA port (depending on media)
Capacity
Supports Advanced Format HDD (15 TB+) and GPT, MRB table format
Connection
- Standalone operation without computer or software - Supports PC link for real-time monitoring and log report
Language support
English, Japanese
Operation
- Display: monochrome LCD
- Status LED: (red/green) on every CRU port
- Operation keys: 4 push buttons (up, down, OK, ESC)
Supported media
- All hard disk drives or SSD's compatible with the CRU DX115 DC enclosure
Standard functions
- Copy: Quick Smart Copy, All Partitions Copy, Percentage Copy and Whole HDD Copy
- Compare: Bit by Bit data compare
- Erase: Quick Erase, Full Erase , DoD Erase (DoD 5220.22-M), Secure Erase (NIST 800-88)
Advanced functions
- PC Monitoring:
USB connection to PC shows write speeds, copy times and progress percentage per port
- Event Log Report:
Registration and read back of detailed production information Log report files are created and saved on hard disk
Supported formats
- Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4), MAC (HFS, HFSX, HFS+)
- Whole Media Copy: all formats
Supported file systems
All (Windows, Macintosh, Linux, Unix etc.)
Power supply
Switchable power supply 115VAC or 230VAC, 50/60Hz
Temperature and humidity
- In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%)
Dimensions
46,0 x 43,0 x 13,5 cm (LxWxH)
Weight
11 kg
Certification
FCC, CE, RoHS
Warranty
12 months carry-in warranty
Brochure Language: EN - File: 0.5 MB
Manual Language: EN - File: 3.1 MB
Product comparison Language: EN - File: 0.5 MB
U-Reach Product Catalog 2023 Language: EN - File: 10.9 MB
All prices and specifications are subject to change and availability.
All offers and orders are subject to our general terms and conditions. Please take note of our disclaimer and
privacy policy. Type errors as well as price changes reserved.
×
Maximum copy speed
U-Reach KV CRU series erasers are able to simultaneously duplicate at a maximum speed of 9 GB/min to each SATA port. The speed always remains constant, even if the number of media to be duplicated increases.
×
Real-Time PC Monitoring
The PC Monitoring function makes it possible to monitor the status and progress of the current process in real-time. The information of each port is shown on the PC screen. This makes it easy to detect poorly performing hard disk drives. The required software is suitable for Windows PCs and is supplied free of charge.
1. Monitor the duplicator status from PC.
2. Show brand, model, serialnumber, time to proces and result of each port. All information, from both source and target media, can be saved.
3. Slow read/write detection: slow preforming drives can simply be detected because all read/write speeds are recorded in the log file.
4. When exporting a log file you can select a time frame. Information is stored in a text (.txt) file and can be kept on a PC. File name is the export date. (example: 20181117.txt)
×
Log Report Management
The Log Report Management function makes it possible to view and save detailed information about the production process. The Log information can be viewed and exported directly via the supplied PC Link software (.txt, .csv, .xml or .pdf) or copied on a USB stick (.txt) on the system.
×
Quick Copy
The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.
×
Sanitization
The U-Reach erasers support different sanitization methods for hard disk drives and SSD's: Quick Erase: Only overwrite FAT. Full Erase: Overwrite the entire data carrier. DoD Erase: Multiple cycles, complies with the US Department of Defence 5220.22-M standard. Secure Erase: A NIST 800-88 supported method to securely sanitize modern drives (HDD and SSD).
×
Daisy-Chain link
The KV CRU disk duplicators / erasers offer a special "Daisy-Chain" function; The "Master" 1-4 KV CRU system can be connected to multiple "Slave" KV 6 CRU systems to form one large system. Up to a maximum of 42 KV units can be linked together.
