CF Duplicator i9 Silver 1-3

CF Duplicator i9 Silver 1-3


Products: Prices:
Price CF904S - u-reach cf904s intelligent 9 silver cf duplicator compact eraser CompactFlash Duplicator i9 Silver 1-3
Price module - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Spare CF slot module
Price adapter - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Adapter CFast to CF

Expected delivery time:
Prices in Euros, excl. 21% VAT.


Main Features:

- Standalone CompactFlash card eraser, no PC connection or software required.
- Real-time production status tracking with PC Monitoring.
- High speed copy of 3.9 GB/min (65 MB/s), per port.
- Compatible with CompactFlash (CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, CF6.0).
- Compact design with exchangeable CF slot modules and external power supply.

i9 CompactFlash Silver functions - u-reach cf904s intelligent 9 silver cf duplicator compact eraser

Available models:

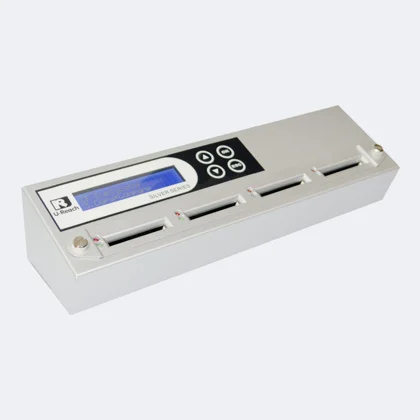

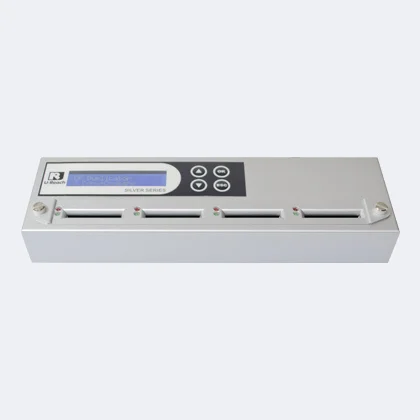

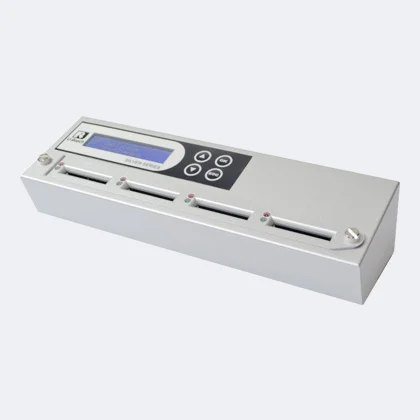

The U-Reach Intelligent 9 Silver CF duplicators are professional duplication systems which allow multiple CompactFlash memory cards to be duplicated or erased simultaneously. The U-Reach i9 Silver 1-3 CF duplicator can make three copies of a CompactFlash memory card at once.

The i9 Silver CF duplicators operate standalone, no PC or software is required. Operating the duplicator is easy; all functions are controlled using the function keys and the LCD display. With the optional "PC Monitoring" function, the current status and functioning of the U-Reach i9 Silver CF eraser can be monitored through a PC.

The U-Reach i9 Silver 1-3 CF duplicator offers advanced features such as "H5 Media Check", "DoD Erase", "A2 Fake Picker" and "Speed ​​Check". The high copy speed of 3.9 GB per minute (65 MB/s) and the fast bit-by-bit Compare function guarantee efficient and reliable duplication of your CF memory cards.

The U-Reach Intelligent 9 CF duplicators have a compact and ergonomic design with an external power supply. All i9 Silver CF duplicators are equipped with changeable ports for easy maintenance.

Features


- Standalone CF card duplicator, no PC connection or software required.
- Real-time PC monitoring function.
- Real-time PC monitoring function.
- Exchangeable slot modules for easy maintenance.
- Exchangeable slot modules for easy maintenance.
- Maximum copy speed up to 3.9 GB per minute, per port.
- Maximum copy speed up to 3.9 GB per minute, per port.
- Quick Copy function for Linux (ext2/3/4), NTFS, FAT16/32, exFAT.
- Quick Copy function for Linux (ext2/3/4), NTFS, FAT16/32, exFAT.
- DoD Erase function complies with the US Department of Defense standard.
- FAT16 and FAT32 Format function for fast formatting of CF cards.
- Capacity Check and A2 Fake Picker functions for true capacity control.
- Capacity Check and A2 Fake Picker functions for true capacity control.
- Speed Check function tests both read and write speed.
- Speed Check function tests both read and write speed.
- H3/H5/H6 Media Check function to test the quality of flash memory.
- H3/H5/H6 Media Check function to test the quality of flash memory.
- Support for all data formats through bitwise duplication.
- Support for CompactFlash memory cards up to 2 TB.
- Easy operation with buttons and LCD display.
- Effortless insertion and removal of media with guide rails.
- External power supply.
- Ergonomic compact design.
- Ergonomic compact design.










Maximum copy speed

U-Reach CF memory card duplicators are able to simultaneously duplicate at a maximum speed of 3.9 GB/min to each port. The speed always remains constant, even if the number of media to be duplicated increases.

Copy Speed - u-reach cf904s intelligent 9 silver cf duplicator compact eraser

Specifications


Model U-Reach Intelligent 9 Silver 1-3 CF duplicator
Product code CF904S
EAN code 4717002699700
CF ports 1x CompactFlash source port, 3x CompactFlash target port
Speed Maximum 65 MB/s (3.9 GB/min) per port (depending on the media used)
Capacity - Support for capacities of up to 2 TB
Connection - Standalone operation without computer or software
- Supports PC link for real-time monitoring
Language support English, Japanese
Operation - Display: monochrome LCD
- Status LED: (red/green) on every CompactFlash port
- Operation keys: 4 push buttons (up, down, OK, ESC)
Supported media - CompactFlash (CF1.0, CF2.0, CF3.0, CF4.0, CF4.1, CF5.0, CF6.0) memory cards up to 2 TB
- CFast memory cards with optional adapter
Standard functions - Copy: Quick Copy (Systems & Files Copy), Whole Media
- Compare: Bit by Bit data compare
- Diagnostic: Speed Test, Capacity Test, A2 Fake Card Test, H3/H5/H6 Test
- Erase: Quick Erase, Full Erase (NIST 800-88), DoD Erase (DoD 5220.22-M)
- Format: FAT16/FAT32
Supported formats - Quick Copy: FAT16/32, exFAT, NTFS, Linux (Ext2/Ext3/Ext4)
- Whole Media Copy: all formats
Supported file systems All (Windows, Linux, other stand-alone systems)
Power supply external 12V 5A adapter
Temperature and humidity - In use: 5°C ~ 45°C (RH: 20% ~ 80%)
- Not in use: -20°C ~ 85°C (RH: 5% ~ 95%)
Dimensions 8,2 x 29,2 x 6,0 cm (LxWxH)
Weight 1,0 kg
Certification FCC, CE, RoHS
Warranty 12 months carry-in warranty


Documentation


  • Brochure - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Brochure
    Language: EN - File: 0.8 MB
  • Quick Guide - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Quick Guide
    Language: EN - File: 3.1 MB
  • Manual - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Manual
    Language: EN - File: 1.9 MB
  • Comparison - u-reach cf904s intelligent 9 silver cf duplicator compact eraser Product comparison
    Language: EN - File: 0.4 MB
  • U-Reach Product Catalog 2023 U-Reach Product Catalog 2023
    Language: EN - File: 10.9 MB

Video









Copyright ©2001-2025 U-Reach Nederland, all rights reserved.

All prices and specifications are subject to change and availability. All offers and orders are subject to our general terms and conditions. Please take note of our disclaimer and privacy policy. Type errors as well as price changes reserved.



×

Maximum copy speed

U-Reach CF memory card duplicators are able to simultaneously duplicate at a maximum speed of 3.9 GB/min to each port. The speed always remains constant, even if the number of media to be duplicated increases.

Speed - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Real-time PC monitoring

Through the PC-Link function it is possible to monitor the status of one or more i9 duplicators in real-time. The required software is compatible with MS Windows PCs and is supplied free of charge.

PC link - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Quick Copy

The "Quick Copy" function only duplicates the existing data area on an NTFS, Linux (ext2/ext3/ext4) FAT16/32 or exFAT partition. The duplication process can be accelerated considerably in most cases. Other not supported data formats can also be duplicated with the "Whole Media" copy function. This will duplicate the entire content in a bitwise operation.

Quick Copy - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Capacity Check

With the "Capacity Check" and "A2 Fake Picker" functions you can test whether the actual capacity of a memory card corresponds to the indicated capacity.

×

Speed Check

With the "Speed Check" function, both read and write speed of CF memory cards can be tested.

Speed Check - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

H3/H5/H6 Media Check

The H3/H5/H6 "Media Check" functions are a powerful tool to check the quality of your CF flash memory cards. A per port check can be preformed for speed and bad sectors.

Media Check - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Exchangeable CF slots

With the specially designed exchangeable CF slots of the i9 series, a faulty slot can be replaced quickly and easily by the user. In three simple steps a CF slot can be replaced within one minute.

Exchangeable - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Ergonomic design

The ergonomic design makes the i9 series 50 to 70 percent smaller than traditional tower duplicators.

Compact Design - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
×

Burn-In Test

Burn-in tests the durability of a CF memory card. A memory card is written to in several cycles with data and then compared. The total number of cycles can be set from 30 minutes to a maximum of 30 days. The status of the test and any errors found can be read on the display.

Burn-In Test - u-reach cf904s intelligent 9 silver cf duplicator compact eraser
